Simple example of a rotational clock with variable trigger interval
and switching rotation-direction.
Simple example of a rotational clock with variable trigger interval
and switching rotation-direction. The input rotation is just
sinodical, switching direction every half second. The trigger
interval is changed with the same pace; every half second it is

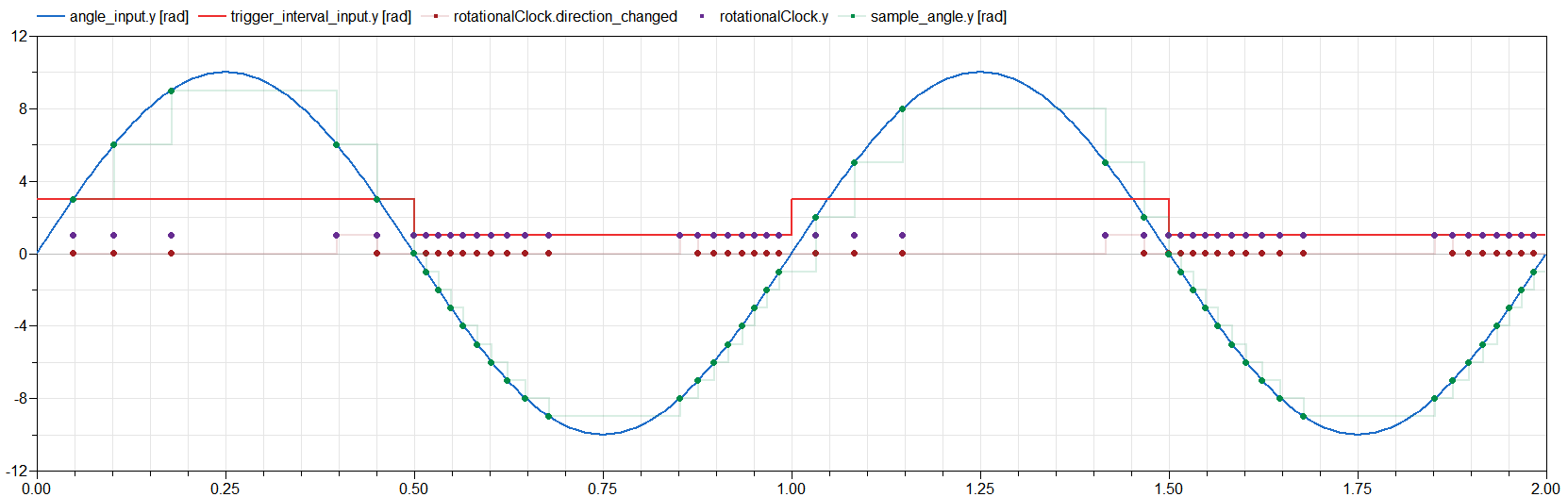

doubled or halfed respectively. The generated clocked signals are
therefore:
.
