.ThermofluidStream.Processes.Tests.Pump_dp_tau_centrifugal_Characteristics

Information

Test model for the pump characteristics according to dp_tau_centrifugal .

The model compares the legacy formulation (useLegacyReynolds = true) with the corrected formulation (useLegacyReynolds = false).

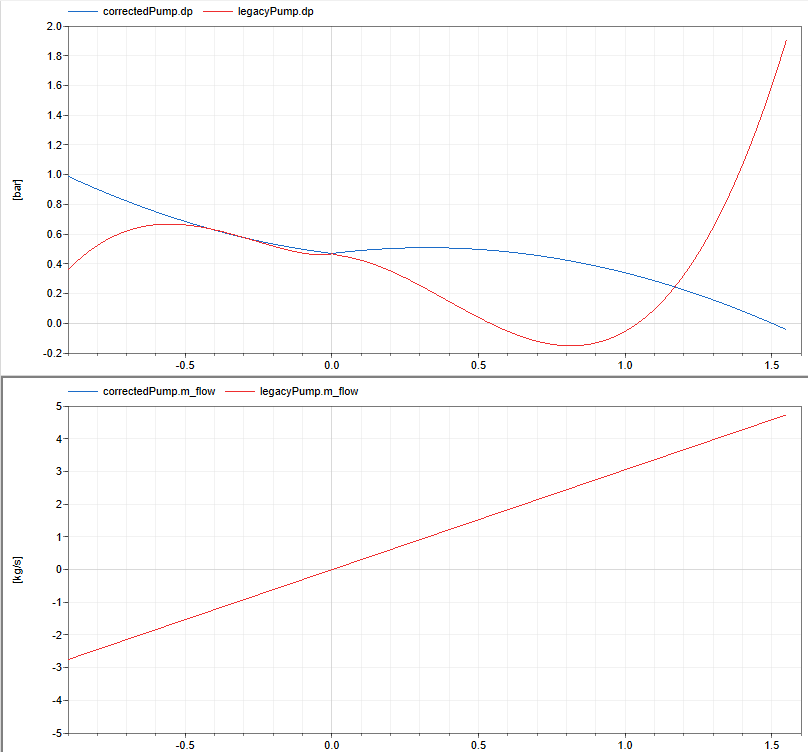

In particular, the pump pressure rise correctedPump.dp is compared against legacyPump.dp for varying flow rates at design rotational speed.

Time is used as a proxy for the mass flow rate (linear relation): time = 0 corresponds to zero mass flow rate, and time = 1 corresponds to the reference mass flow rate.
Note that time < 0 corresponds to negative mass flow rates.

Contents

Name	Description
Medium	Medium model

Revisions

• 2026, by Raphael Gebhart (raphael.gebhart@dlr.de):
  Initial version.
